| 產品型號 | 磨削直徑 通磨/切入磨 |
磨削長度 通磨/切入磨 |
加工精度(μm) | 總功率 (kw) |
機床重量 (kg) |
外形尺寸 (cm) |
備注 | ||
| 圓度 | 圓柱度 | 粗糙度(Ra) | |||||||
| M1020A | 0.5~20/3~20 | 80/80 | 2 | 2 | 0.32 | 5.3 | 1900 | 175×129\0 | |
| MG1020 | 0.5~20/3~20 | 80/80 | 1 | 1.2 | 0.16 | 5.57 | 2000 | 180×215\0 | 高精度 |
| MT1040A | 2~40/7~40 | 140/120 | 2 | 3 | 0.32 | 8.83 | 2000 | 155×130\0 | 切入磨特殊訂貨 |
| MM1040S | 1~40/2~40 | 140/120 | 1.5 | 2 | 0.20 | 10.23 | 2000 | 155×130\0 | 精密數控一軸 |
| M1050A | 5~50/7~50 | 120 | 2 | 3 | 0.32 | 13.78 | 2800 | 192×168\0 | |
| MG1050B | 5~50 | 200/145 | 1 | 1.5 | 0.16 | 16.83 | 5000 | 355×270\0 | 高精度、數控 |
| MGT1050 | 2~50 | 180 | 1 | 1.8 | 0.16 | 11.59 | 5000 | 220×119\0 | 高精度、通磨 |
| MK1050 | 2~50/5~50 | 195 | 0.6 | 1 | 0.20 | 25 | 5000 | 240×130\0 | 數控 |
| WX3-018 | 2~50 | 200 | 1 | 1.5 | 0.16 | 13.7 | 3000 | 221×124\0 | 高精度 |
| WX3-018/1 | 2~50/5~50 | 200 | 1 | 1.5 | 0.16 | 14.2 | 3000 | 229×120\0 | 數控 |
| WX3-018CNC5 | 2~50/5~50 | 200 | 1 | 1.5 | 0.16 | 25 | 3000 | 229×120\0 | 全自動 |
| M1080D | 5~80 | 180/145 | 2 | 3 | 0.32 | 16.68 | 3500 | 195×158\0 | |
| MKS1080 | 5~80 | 200/145 | 2 | 3 | 0.32 | 18 | 5000 | 340×206\0 | 高速、數控 |
| M10100 | 10~100 | 210/195 | 2 | 3 | 0.32 | 20.16 | 5000 | 267×150\0 | 切入磨特殊訂貨 |
| M10100B | 10~100 | 210/195 | 2/3(切入) | 3/5(切入) | 0.32 | 20.96 | 5000 | 267×150\0 | 數控 |
| MS10100 | 10~100 | 195 | 2 | 3 | 0.32 | 36.66 | 7500 | 340×142\0 | 高速 |
| MKS10100 | 10~100 | 240 | 2 | 3 | 0.32 | 36.6 | 7500 | 340×142\0 | 高速 、數控 |
| MKG10100 | 10~100 | 195 | 1 | 2 | 0.16 | 25.8 | 7000 | 328×130\0 | 高精度、數控 |
| MW10200 | 10~200 | 300/290 | 2 | 4 | 0.32 | 47 | 10000 | 367×155\0 | |
| MW10200/3 | 10~200 | 300/290 | 2 | 4 | 0.32 | 42.67 | 10000 | 367×155\0 | 數控 |
| MGW10200 | 10~200 | 300/290 | 1 | 2.5 | 0.16 | 43.38 | 10000 | 367×159\0 | 高精度 |
| MGW10200/2 | 10~200 | 300/290 | 1 | 2.5 | 0.16 | 35.37 | 10000 | 367×159\0 | 高精度、數控 |
| M11100A | 10~100 | 300/390 | 3/2(切入) | 3/5(切入) | 0.32 | 25.67 | 10000 | 272×135\0 | 寬砂輪 |
| M11100B | 10~100 | 300/390 | 2 | 3/5(切入) | 0.32 | 45 | 10000 | 272×135\0 | 寬砂輪、數控 |
| M11150A | 10~150 | 300/490 | 2 | 3 | 0.32 | 45 | 10000 | 325×168\0 | 寬砂輪 |
| MK11150 | 10~150 | 300/390 | 2 | 4 | 0.32 | 45 | 10000 | 325×168\0 | 寬砂輪、數控 |

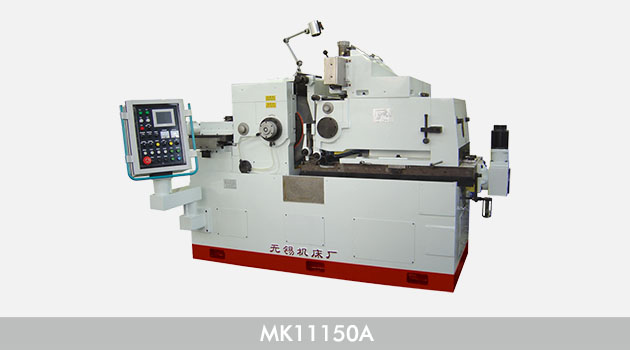

| MK11150A | 10~150 | 300/490 | 2 | 3 | 0.32 | 44.71 | 10000 | 325×168\0 | 寬砂輪、數控 |
| M11200/2 | 50~200 | 300/590 | 3 | 3 | 0.32 | 41.47 | 10000 | 350×185\0 | 寬砂輪 |
| M11200/4 | 50~200 | 300/590 | 3 | 3 | 0.32 | 43.27 | 10000 | 350×185\0 | 寬砂輪、數控 |
| MK10300 | 50~300 | 300/480 | 3 | 5 | 0.32 | 62 | 12000 | 410×159\0 | 數控 |

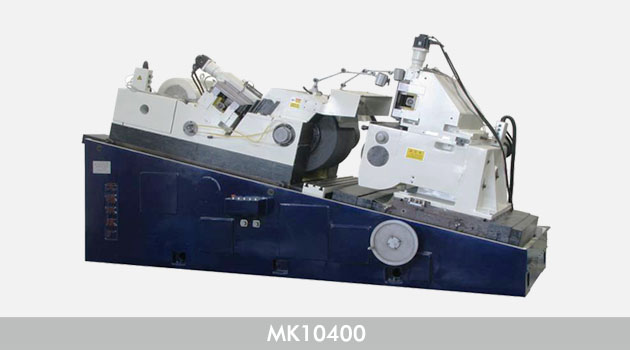

| MK10400 | 50~400 | 400/480 | 5 | 8 | 0.32 | 70 | 18000 | 445×208\0 | 數控 |
| M11200A | 20~200 | 300/590 | 1.5 | 3 | 0.32 | 43.27 | 10000 | 3500×1850× | 寬砂輪、數控 |
| MS1080 | 5~80 | 200/145 | 2 | 2/3(切入) | 0.32 | 17.55 | 5000 | 3400×2066× | 高速 |
| MT1040S | 2~40/7~40 | 140/120 | 2 | 2 | 0.32 | 9.03 | 2000 | 155×130\0 | 高速 |
| MG1180 | 5~80/10~80 | 250/280 | 1 | 1 | 0.16 | 22.62 | 5600 | 242×154\0 | 高精度 |
| MK1180 | 5~80/10~80 | 250/280 | 1 | 2 | 0.16 | 22.62 | 5600 | 242×154\0 | 高精度、數控 |
